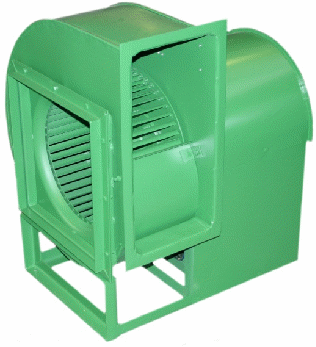

FORWARD UTILITY FANS
APPLICATIONS
Air conditioning units, Heating& ventilating units, Exhaust systems
-
Wheels are balanced statically & dynamically.
-
Fabricated from heavy gage sheet met
-
Three designs:
Design 1: This is the standard wheel. Suitable for tip Speeds up to 6000 ft/min (approx. 41/2" sp)
Design 2: Peripherally reinforced for tip speeds up to 7000 ft/min (approx. 6" sp)
Design 3: Additionally reinforced for tip speeds up to 8100 ft/min (approx. 8" sp)
FORWARD UTILITY FAN SINGEL INLET (SWSI)
|
Fan size |
Cap. (CFM) |
SP (in.w.g) |
Weight (Kg) |
Dimension |
||
|
LENGTH |
WIDTH |
HEIGHT |
||||
|
SWSI-9 |
450-1800 |
½ -8 |
40 |
600 |
400 |
470 |
|
SWSI-11 |
750-2200 |
½ -8 |
50 |
640 |
400 |
580 |
|
SWSI-13 |
850-2700 |
½ -8 |
60 |
690 |
520 |
610 |
|
SWSI-14 |
1500-4200 |
½ -8 |
70 |
790 |
580 |
710 |
|
SWSI-16 |
1800-4500 |
½ -8 |
75 |
840 |
640 |
740 |
|
SWSI-17 |
2000-5000 |
½ -8 |
80 |
910 |
680 |
790 |
|
SWSI-19 |
2500-7000 |
½ -7 |
100 |
980 |
740 |
890 |
|
SWSI-22 |
3500-9000 |
½ -7 |
130 |
1130 |
850 |
980 |
|
SWSI-26 |
4200-12000 |
½ -7 |
200 |
1190 |
1040 |
1190 |
|
SWSI-29 |
5500-15000 |
½ -7 |
320 |
1300 |
1160 |
1350 |
|
SWSI-32 |
6200-20000 |
½ -8 |
370 |
1350 |
1280 |
1470 |
Note: All dimensions are in mm.
